Following our initial solution featuring Early Warning Aspirating Smoke Detectors that combine the Cabinet Smoke Detector (CSD-10) with a Remote Display Unit, AVA Prevent offers another advanced option: the CSS Multi-Channel Addressable Detection system combined with a Pinpointer.

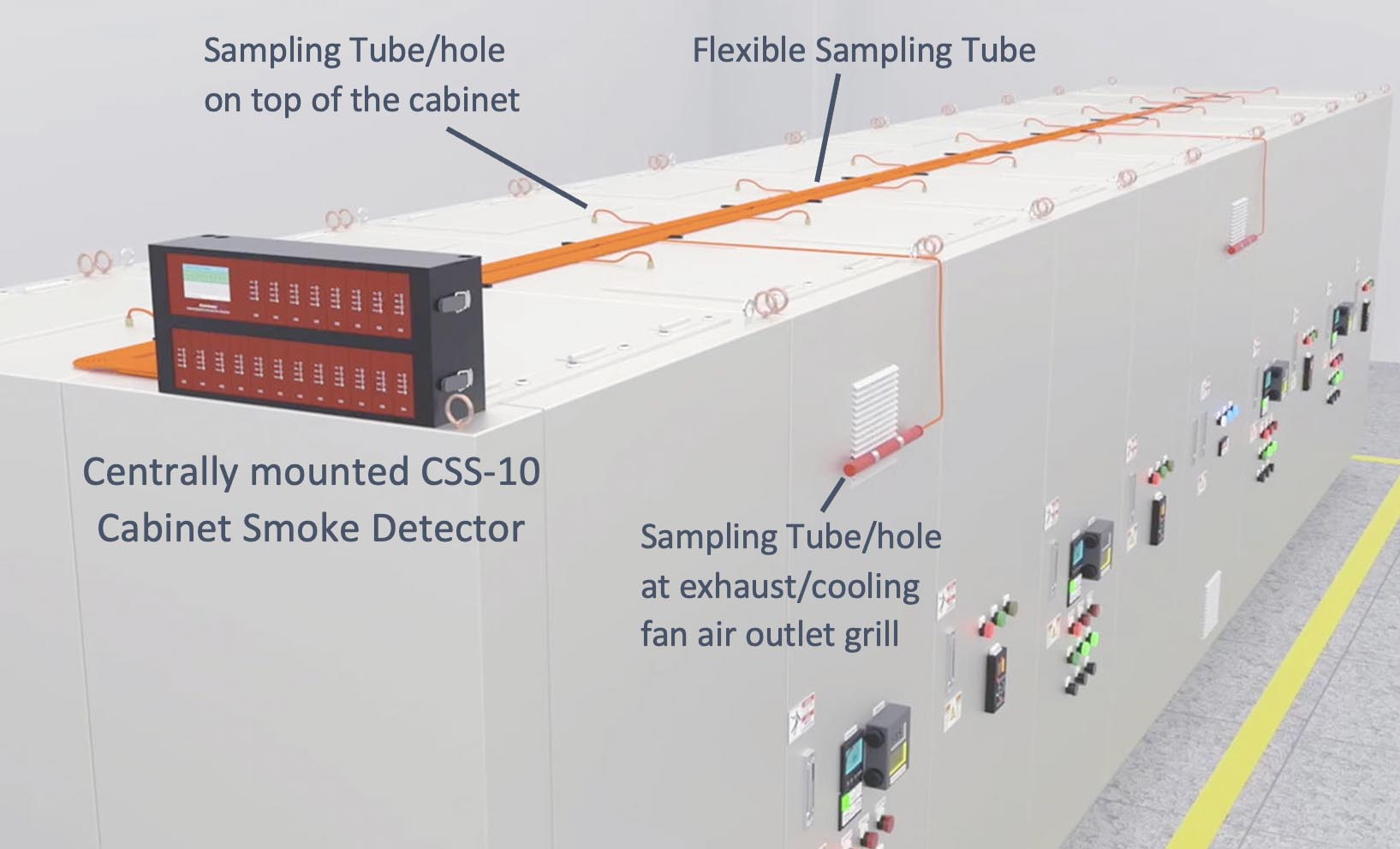

The CSS-10 units can be installed on one side of the switchboard, with each CSS sampling tube extending to the protected cabinet. The air sampling holes are positioned where smoke is most likely to occur in the event of a fire, such as:
- At the top of the cabinet
- Near the exhaust or cooling fan, or air return grill
- Inside concealed partitions
The PinPointer-C8S is a Multi-Channel Addressable Cabinet Smoke Detection unit that comes with 8 CSS-10 modules. It includes a 4.3” touch screen display, which shows real-time status information for each CSS-10, such as:
- Analogue smoke value
- Airflow value
- Alarm
- Fault
- Isolate
- Other system information
The PinPointer-C8S also enables parameter configuration for each individual CSS-10 module.
For applications requiring protection of more than 8 cabinets, the system can be expanded by adding a PinPointer-12S, which includes an additional 12 CSS-10 units.
The benefits with this solution:
- LOCATE the origin of the fire.- DISPLAY the progress of smoke/fire on the display.
- NO SMOKE DILUTION, each cabinet can have a high sensitivity and extremely early warning cabinet notification.
- CONTINUOUSLY smoke data collection on each cabinet, which leads to discovering potential problems earlier.
